| Ask Lasest Price | |
| Brand Name : | YOUWEI |
| Model Number : | YW-D01 |
| Certification : | CE FCC RoHS |
| Price : | USD 8-20 UNIT |
| Payment Terms : | T/T, Western Union, MoneyGram, D/A, L/C, Paypal |
| Supply Ability : | 10000pcs |
| Delivery Time : | 5-7 business days |
| Specification | Details |

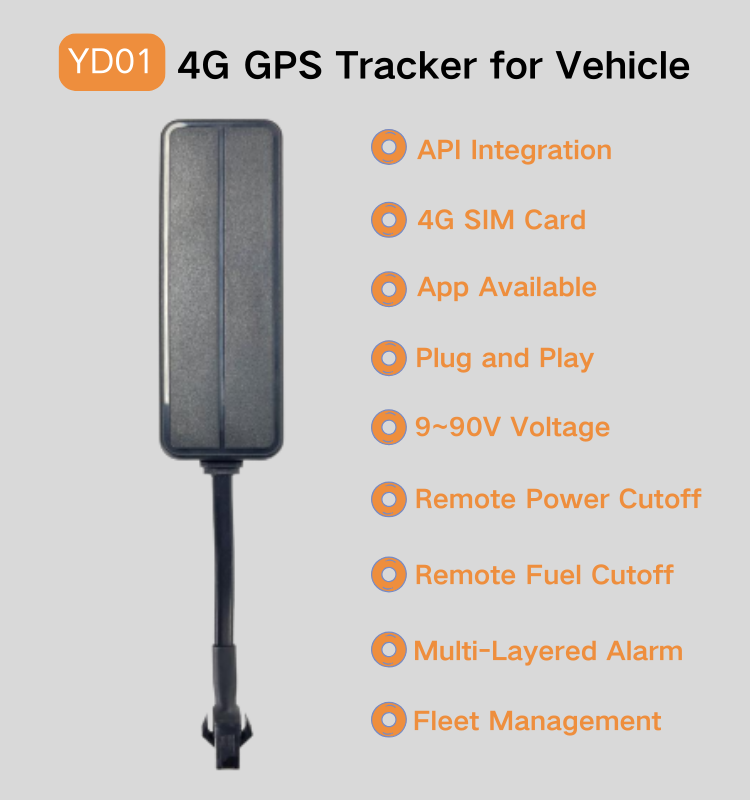

| Model No. | YW-D01 |
| Dimensions | 74 (L) × 26 (W) × 12 (H) mm |
| Weight | 28g (including battery) |
| Built-in Battery | 150mAh (3.7V) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Sensor | Precision vibration sensor |
| Frequency Bands | LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 |
| Communication Module Brand | 4G full-network module |
| Positioning Module Brand | GPS & BDS module |
| Max Output Power | EGSM900: 33dBm ±2dB/5dBm ±5dB DCS1800: 30dBm ±2dB/0dBm ±5dB WCDMA: B1/B5/B8: 24dBm +1/-3dB/<-49dBm LTE-FDD: B1/B3/B5/B8: 23dBm ±2dB/<-39dBm LTE-TDD: B34/B38/B39/B40/B41: 23dBm ±2dB/<-39dBm |
| Dynamic Output Range | -15 to -108dBm |
| Receiver Sensitivity | -107dBm |
| Max Frequency Error | ±0.1ppm |
| Sensitivity | Cold start: -145dBm Hot start: -156dBm Warm start: -145dBm Navigation: -160dBm Tracking: -162dBm |
| Time to First Fix (TTFF) | Cold start: Avg. 32 sec |
| GSM Antenna | Built-in |
| GPS Antenna | Built-in |
| LED Indicator | Power/status indicator |
| Transmission Protocol | TCP |
| Power Detection | Alarms if main power is disconnected |
| Data Reporting | Real-time GPS updates, customizable for clients |
| Electronic Fence | TBD |
| Driving Behavior Detection | Alerts if speed exceeds set limit |
| GPS Data | Real-time positioning updates |
| Vibration Alarm | Triggers alarm if vehicle vibrates in armed state |
|
|
