Highlight quality and professionalism Emphasis on innovation Teamwork
1 Years
| Ask Lasest Price | |
| Brand Name : | YOUWEI |
| Model Number : | BS-G001 |
| Certification : | CE FCC RoHS |
| Price : | USD 15 UNIT |
| Supply Ability : | 100000 |
| Delivery Time : | 5-10 working days |
Multi-Mode Positioning: GPS, Beidou, GLONASS, LBS, AGPS for global coverage and high accuracy.
Real-Time Data Reporting: Customizable GPS updates with latitude/longitude, speed, and direction.
Scheduled Tracking: Set intervals for automated position reporting.
Historical Trajectory: Replay up to 90 days of driving tracks, including stop times and routes.
Wired Installation, Never Power Off – Ideal for scenarios requiring long-term real-time tracking and extended battery life.
Free Mobile App: Compatible with Android, iOS, and HarmonyOS for remote monitoring.
Screw-Mount Installation, Tamper-Proof Alarm – More secure and stable.

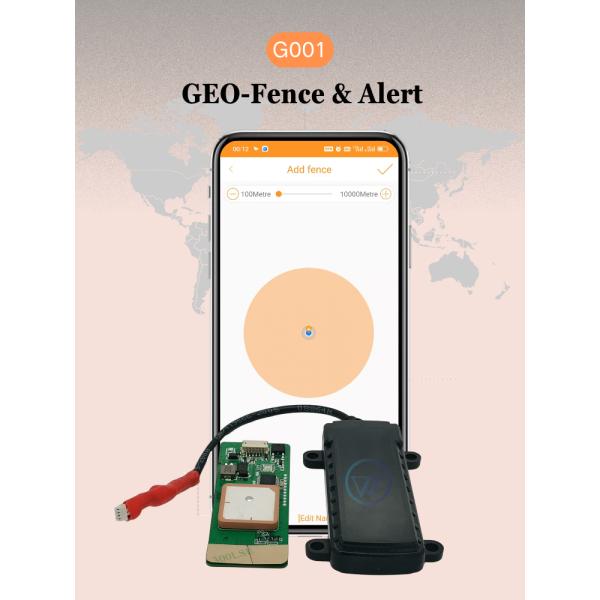

Geo-Fence Alarm: Notifies when the device exits predefined boundaries.
Street View Integration: 360° HD map support for enhanced location visualization.
Low-Power Design: Optimized for long-term use with minimal charging (twice/year
under default settings).
Wide Voltage Design – Expandable up to 120V as needed, suitable for diesel and
electric vehicles.
Precise Positioning – Whether in remote mountainous areas or urban canyons.
Multiple Data Output Formats – Supports custom command statements.
Customizable Features – RTK, PPK, Anti-Jamming, AGPS, Geo-Fencing, Inertial Navigation,
DGPS, etc.
Product Parameters of G001 Waterproof GPS Locator
| Category | Details |
| Model | BS-G001 |
| Manufacturer | Youwei |
| Locating Mode | GPS, Beidou, GLONASS, GPS, Beidou, LBS, AGPS (Multiple positioning systems can be flexibly combined as needed.) |
| Positioning Accuracy | <5m (Precision selectable, centimeter-level positioning accuracy customizable) |
| Sensitivity | Reacquisition sensitivity: - 160 DBM Tracking sensitivity: - 162 DBM |
| Baud Rate | 9,600 bps (Default) or 115200bps |
| Max Navigation Update Rate | 1Hz to 10Hz |
| Accuracy of Time Pulse Signal | RMS 25 ns |
| Velocity accuracy | 0.1 m/s |
Operational Limits | Dynamics ≤ 4 g Altitude 18000 m Velocity 515 m/s |
| Data Output Format | NMEA 0183 |
| Time-to-First-Fix (TTFF) | Cold start: ≤32s Warm start: ≤1s |
| Data Reporting | Real-time updates; customizable intervals |
| Communication | 4G LTE, 4G Cat-M1 |
| Power Supply | Rechargeable, wide voltage design, customizable from 9V to 120V |
| Operating Temp. | -40°C to +80°C |
| Dimensions | Compact design (exact size TBD) |
| Weight | Lightweight (exact weight TBD) |
| Software | Free app for Android/iOS/HarmonyOS |
| API Integration | Supported |
| Customized service | Available |
|
|
