International Antenna Car Recorder Vehicle Navigation System Gps Tracking Receiver Module

1.Product Feature

• Build on high performance GNSS single chip AT6558R
• 72 channels in Search mode
• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (18.1mm x 18.1mm x6.2mm±0.1mm ) suitable for space-sensitive application
• Support standard NMEA

2.Product Application

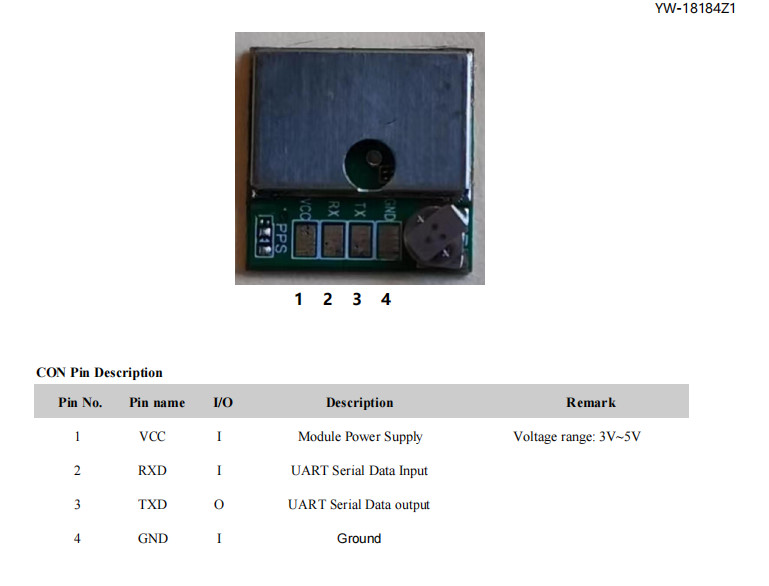

The YW-18184Z1 module are designed for use with passive and active antennas.

18.1*18.1*6.2mm

Minimum gain

15 dB (to compensate signal loss in RF cable)

Active Antenna Recommendations

Maximum gain

30 dB

Maximum noise figure

1.5 dB

4.Product details

5.Shipping

6.Certification
