Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification

Ask Lasest Price
Model Number :	YW-198G3
Price :	USD 5.15-5.35 Unit
Brand Name :	Youwei
Certification :	CE，Rohs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal
Supply Ability :	200000 PCS Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification

USb Connector Sat Nav Mini GPS Receiver Internal Navigation G-Mouse GPS Antenna Module For Car Motorcycle Recorder

1.Product Descriptions

Featuring a single die solution, low power consumption and low costs, the YW-198G3FH are multi-

GPS/GNSS (GPS, Beidou,GLONASS, Galileo and QZSS and SBAS) positioning Module developed to meet the

requirements of an extensive range of applications and end-products. Based on the high performance

GK9501 position engine,these receivers provide exceptional sensitivity and acquisition times and

interference suppression measures enable reliable positioning even in difficult signal conditions.

2.Product Features

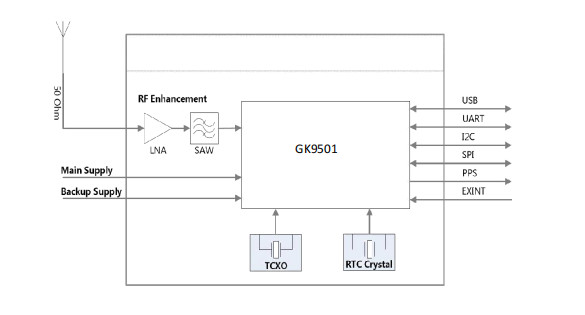

• Build on high performance GNSS single chip GK9501

• 72 channels in Search mode

• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity

• up to 5Hz navigation update rate

• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support

• Supports AGPS

• Integrated TCXO,LNA,SAW,RTC

• Compact size (4.2cm*3.5cm*1.1cm±0.2mm ) suitable for space-sensitive application

• Support standard NMEA

3.Product Application

• Handheld GPS receiver application

• Automotive application

• Ideal for PDA, Pocket PC

• Car navigation and tracking

• Geographic Surveying

• AVL and Location-Based Services

• Sports and Recreation

• Timing application

• Marine Navigation, Fleet Management

• UAV

4.Size

Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification

5.Company info

Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification

6.Certification

Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification

7.Shipping

Built In Wireless Rtk Gps Module With Internal Backup Battery FCC Certification
